Application Scenarios:
This motor is primarily applied in drilling projects where severe downhole vibration and impact are prevalent. It is widely utilized in directional drilling, horizontal drilling, and deep/ultra-deep well drilling operations in hard rock formations (e.g., granite, quartz sandstone), fractured formations, and heterogeneous formations with alternating hard and soft layers—scenarios that easily induce high-frequency vibration and impact on the drill string and downhole tools. Additionally, it is suitable for unconventional resource development projects (e.g., shale gas, tight oil) with demanding drilling conditions, as well as for drilling operations in offshore oil and gas fields where vibration control is crucial for ensuring the safety of marine drilling equipment. The motor also plays a critical role in precision drilling projects requiring high wellbore quality (e.g., geothermal wells, exploration wells) and in drilling operations using expensive PDC drill bits or sensitive measurement-while-drilling (MWD) tools that are prone to damage from vibration.
Product Advantages:
Firstly, it exhibits excellent shock absorption and vibration attenuation performance, effectively reducing the amplitude and frequency of downhole vibration (especially axial and lateral vibration) and mitigating impact loads on the drill bit, motor, and MWD tools, thus significantly extending the service life of downhole equipment and reducing tool replacement costs. Secondly, the motor maintains stable power output and consistent drilling efficiency under high-vibration conditions, avoiding torque and speed fluctuations caused by vibration, which ensures a stable penetration rate and improves drilling efficiency. Thirdly, it enhances well trajectory control accuracy, as reduced vibration minimizes the deviation of the drill bit from the designed path, facilitating the construction of high-quality wellbores with precise trajectory. Moreover, the shock-absorbing design reduces the damage to the wellbore wall caused by excessive vibration, lowering the risk of wellbore collapse and improving wellbore stability. Finally, it improves operational safety and reliability, reducing the probability of downhole accidents (e.g., drill bit damage, tool sticking) caused by vibration, shortening non-drilling time, and ultimately lowering overall drilling costs.
FAQ：
Q：What is the warranty period of your downhole motor and can you provide maintenance service?
A：Our downhole motor have a warranty of 400 hours, we have our own repair station in Kazakhstan, and we will consider setting up a repair service station in other places if needed.
Q: Are you a manufacturer?
A: Yes, we are factory.
Q: How about the delivery time?
A:10-25 working days after payment.
Technical parameter table of Downhole motor
Model ID | Unit | 5LZ57×7.0 | 7LZ73×7.0 | 7LZ89×7.0 | 9LZ89×7.0 | 7LZ95×7.0 | 7LZ102×7.0 | H7LZ102×7.0 | ||
Applicable hole size | mm | 83～121 | 83～121 | 105～143 | 105～143 | 114～150 | 114～150 | 114～150 | ||
in | 3 1/4～4 3/4 | 3 1/4～4 3/4 | 4 1/8～5 5/8 | 4 1/8～5 5/8 | 4 1/8～5 7/8 | 4 1/8～5 7/8 | 4 1/8～5 7/8 | |||
Flow rate | L/S | 2-4 | 2.5-5 | 5-10 | 5-10 | 6-12 | 6-12 | 7-14 | ||
Pressure | Mpa | 3.2 | 3.2 | 2.4 | 3.2 | 4.0 | 4.0 | 4.0 | ||
Speed | r/min | 246 | 140-280 | 122-244 | 245 | 132-264 | 132-264 | 120-240 | ||
Operation Torque | N·m | 200 | 491 | 854 | 504 | 1417 | 1417 | 2054 | ||
Maximum Torque | N·m | 300 | 736 | 1281 | 756 | 2126 | 2126 | 2875 | ||
Power Output | KW | 5.4 | 14 | 21 | 13.6 | 37 | 37 | 49 | ||
Working WOB | KN | 5 | 10 | 16 | 16 | 25 | 25 | 25 | ||
MaximumWOB | KN | 10 | 15 | 30 | 30 | 40 | 40 | 40 | ||
Connection | UP | 1 1/2 REG | 2 3/8 REG | 2 7/8 REG | 2 7/8 REG | 2 7/8 REG | 2 7/8 REG | 2 7/8 REG | ||
Down | 1 1/2 REG | 2 3/8 REG | 2 7/8 REG | 2 7/8 REG | 2 7/8 REG | 2 7/8 REG | 2 7/8 REG | |||
Stage | 4.0 | 5.0 | 3.2 | 4.0 | 5.0 | 5.0 | 4.0 | |||
Model ID | Unit | 7LZ120×7.0 | 5LZ127.5×7.0 | 7LZ127.5×7.0 | 7LZ135×7.0 | 7LZ150×7.0 | 5LZ165×7.0V | 5LZ165.5×7.0V | ||
Applicable hole size | mm | 152～200 | 152～200 | 152～200 | 159～203 | 171～222 | 215～244 | 215～244 | ||
in | 6～7 7/8 | 6～7 7/8 | 6～7 7/8 | 6 1/4-8 | 6 3/4-8 3/4 | 8 1/8～9 5/8 | 8 1/8～9 5/8 | |||
Flow rate | L/S | 8-16 | 15 | 9-18 | 12-24 | 15-30 | 18-30 | 1830 | ||
Pressure | Mpa | 3.2 | 4.0 | 4.0 | 4.0 | 4.0 | 3.2 | 4.0 | ||
Speed | r/min | 85-170 | 150 | 88-176 | 94-188 | 78-156 | 112-186 | 112-186 | ||
Operation Torque | N·m | 3060 | 2242 | 4133 | 5167 | 7291 | 5330 | 6662 | ||
Maximum Torque | N·m | 4590 | 3363 | 5808 | 7306 | 10309 | 7536 | 9420 | ||
Power Output | KW | 52 | 37 | 76 | 51 | 119 | 103 | 129 | ||
Working WOB | KN | 38 | 40 | 45 | 50 | 70 | 60 | 70 | ||
MaximumWOB | KN | 70 | 80 | 90 | 100 | 140 | 120 | 140 | ||
Connection | UP | 3 1/2 REG | 3 1/2 REG | 3 1/2 REG | 3 1/2 REG | 3 1/2 REG | 4 1/2 REG | 4 1/2REG | ||
Down | 3 1/2 REG | 3 1/2 REG | 3 1/2 REG | 3 1/2 REG | 3 1/2 REG | 4 1/2 REG | 4 1/2 REG | |||
Stage | 5.0 | 5.0 | 5.0 | 5.0 | 6.0 | 5.0 | 5.0 | |||

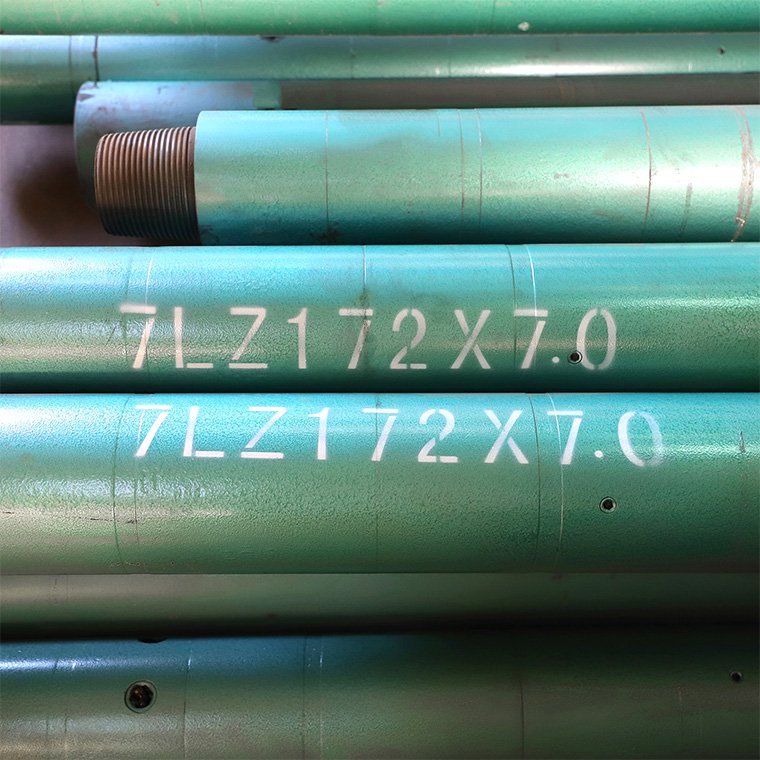

Model ID | Unit | 7LZ165×7.0 | H7LZ172.5×7.0Ⅶ | 7LZ172×7.0Ⅶ | 3LZ172×7.0 | 4LZ172×7.0 | 5LZ178×7.0 | 7LZ178.5×7.0 | ||
Applicable hole size | mm | 215～244 | 215～244 | 215～244 | 215～244 | 215～244 | 215～244 | 213～251 | ||
in | 8 1/8～9 5/8 | 8 1/8～9 5/8 | 8 1/8～9 5/8 | 8 1/8～9 5/8 | 8 1/8～9 5/8 | 8 1/8～9 5/8 | 8 1/8～9 5/8 | |||
Flow rate | L/S | 18-36 | 20-36 | 20-36 | 18-30 | 18-30 | 20-36 | 20-36 | ||
Pressure | Mpa | 3.6 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | ||
Speed | r/min | 82-164 | 75-150 | 80-144 | 172-289 | 137-229 | 107-193 | 80-144 | ||
Operation Torque | N·m | 7979 | 12680 | 10126 | 2225 | 3245 | 7764 | 10126 | ||
Maximum Torque | N·m | 1128 | 17752 | 14318 | 3337 | 4867 | 10970 | 14318 | ||
Power Output | KW | 137 | 241 | 154 | 70.7 | 72～108 | 157 | 154 | ||
Working WOB | KN | 70 | 80 | 100 | 70 | 70 | 80 | 100 | ||
MaximumWOB | KN | 140 | 160 | 160 | 140 | 140 | 160 | 180 | ||
Connection | UP | 4 1/2 REG | 4 1/2 REG | 4 1/2 REG | 4 1/2 REG | 4 1/2 REG | 4 1/2 REG | 4 1/2 REG | ||
Down | 4 1/2 REG | 4 1/2 REG | 4 1/2 REG | 4 1/2 REG | 4 1/2 REG | 4 1/2 REG | 4 1/2 REG | |||
Stage | 4.5 | 5.0 | 5.0 | 4.0 | 4.0 | 5.0 | 5.0 | |||
Model ID | Unit | 5LZ185×7.0 | 7LZ185.5×7.0 | 5LZ197×7.0 | 5LZ197.5×7.0 | 6LZ197×7.0 | 7LZ197×7.0 | 5LZ203·5×7.0 | ||
Applicable hole size | mm | 215～244 | 215～244 | 244～311 | 244～311 | 244～311 | 244～311 | 244～311 | ||
in | 8 1/8～9 5/8 | 8 1/8～9 5/8 | 9 1/8～12 5/8 | 9 5/8～12 1/4 | 9 5/8～12 1/4 | 9 5/8～12 1/4 | 9 5/8～12 1/4 | |||
Flow rate | L/S | 20-36 | 20-36 | 25-50 | 25-50 | 25-50 | 25-50 | 25-50 | ||
Pressure | Mpa | 4.0 | 4.0 | 3.2 | 4.0 | 4.0 | 4.0 | 4.0 | ||
Speed | r/min | 105-189 | 88-176 | 84-168 | 84-168 | 83-166 | 72-144 | 84-168 | ||
Operation Torque | N·m | 7897 | 9239 | 9925 | 12407 | 12350 | 14057 | 12407 | ||
Maximum Torque | N·m | 11050 | 13069 | 14033 | 17542 | 17290 | 19870 | 17542 | ||
Power Output | KW | 156 | 170 | 174 | 218 | 214 | 211 | 218 | ||
Working WOB | KN | 90 | 120 | 100 | 120 | 120 | 125 | 120 | ||
MaximumWOB | KN | 180 | 240 | 200 | 240 | 240 | 240 | 240 | ||
Connection | UP | 4 1/2 REG | 4 1/2 REG | 5 1/2 REG | 5 1/2 REG | 5 1/2 REG | 5 1/2 REG | 5 1/2 REG | ||
Down | 4 1/2 REG | 4 1/2 REG | 6 5/8 REG | 6 5/8 REG | 6 5/8 REG | 6 5/8 REG | 6 5/8 REG | |||
Stage | 5.0 | 5.0 | 5.0 | 5..0 | 5.0 | 5.0 | 5.0 | |||
Model ID | Unit | 6LZ203×7.0 | 7LZ203·5×7.0 | 7LZ216×7.0 | 5LZ216·5×7.0 | 7LZ228×7.0 | 5LZ244·5×7.0 | 7LZ244×7.0 | ||
Applicable hole size | mm | 244～311 | 244～311 | 273～323 | 273～323 | 311～445 | 311～445 | 311～445 | ||
in | 9 5/8～12 1/4 | 9 5/8～12 1/4 | 10 3/4～12 3/4 | 10 3/4～12 3/4 | 12 1/2～17 1/2 | 12 1/2～17 1/2 | 12 1/2～17 1/2 | |||
Flow rate | L/S | 25-50 | 25-50 | 28-55 | 28-55 | 35-70 | 35-70 | 35-70 | ||
Pressure | Mpa | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | ||
Speed | r/min | 83-166 | 72-144 | 90-176 | 90-176 | 78-156 | 80-160 | 72-144 | ||
Operation Torque | N·m | 12350 | 14057 | 16183 | 12855 | 16207 | 18708 | 20231 | ||
Maximum Torque | N·m | 17290 | 19870 | 22656 | 17997 | 22915 | 26190 | 28606 | ||
Power Output | KW | 214 | 211 | 298 | 236 | 264 | 313 | 305 | ||
Working WOB | KN | 120 | 125 | 150 | 140 | 160 | 150 | 180 | ||
MaximumWOB | KN | 240 | 240 | 300 | 260 | 300 | 300 | 320 | ||
Connection | UP | 5 1/2 REG | 5 1/2REG | 6 5/8 REG | 6 5/8 REG | 6 5/8 REG | 6 5/8 REG | 6 5/8 REG | ||
Down | 6 5/8 REG | 6 5/8 REG | 6 5/8 REG | 6 5/8 REG | 6 5/8 REG | 6 5/8 REG | 6 5/8 REG | |||
Stage | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 | 5.2 | 5.3 | |||
Model ID | Unit | 3LZ286×7.0 | 5LZ286×7.0 | |||||||
Applicable hole size | mm | 375～660 | 375～660 | |||||||
in | 14 3/4～26 | 14 3/4～26 | ||||||||
Flow rate | L/S | 40-80 | 45-90 | |||||||
Pressure | Mpa | 3.2 | 3.2 | |||||||
Speed | r/min | 165 | 68-136 | |||||||
Operation Torque | N·m | 11840 | 27196 | |||||||
Maximum Torque | N·m | 17760 | 38070 | |||||||
Power Output | KW | 215 | 387 | |||||||
Working WOB | KN | 170 | 180 | |||||||
MaximumWOB | KN | 320 | 340 | |||||||
Connection | UP | 7 5/8 REG | 7 5/8 REG | |||||||
Down | 7 5/8 REG | 7 5/8 REG | ||||||||
Stage | 4.0 | 4.5 | ||||||||
