Application Scenarios:

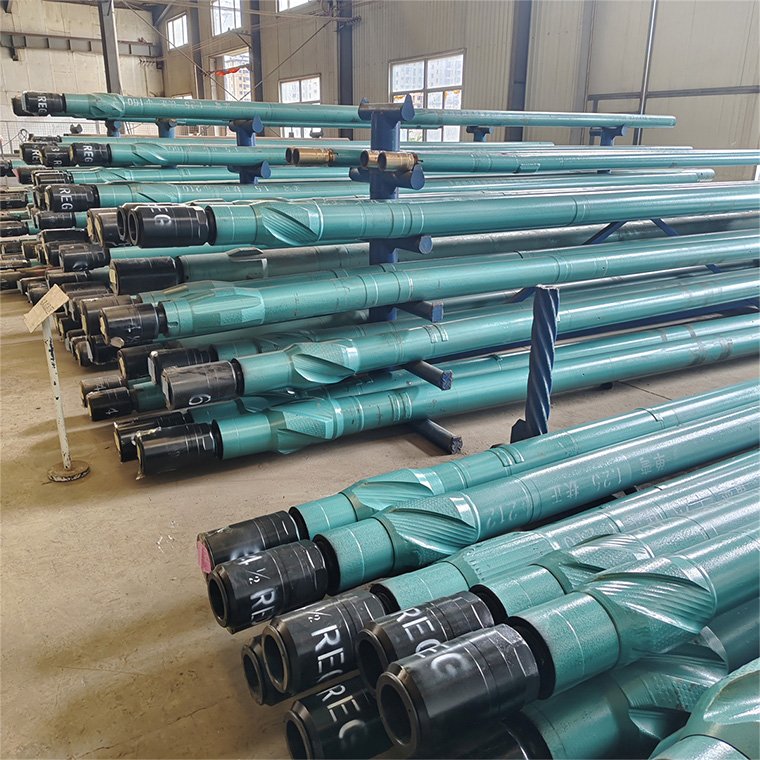

This motor is the core equipment for directional drilling projects in oil and gas fields, widely applied in horizontal drilling, deviated drilling, and three-dimensional trajectory drilling operations. It is particularly suitable for unconventional resource development projects such as shale gas and tight oil, where horizontal well drilling is required to maximize reservoir contact area. Additionally, it is utilized in deep/ultra-deep well drilling, multilateral well drilling, and sidetracking operations in mature oilfields to tap remaining oil and gas reserves. The motor also plays a critical role in drilling projects that need to bypass underground obstacles (e.g., fault zones, abandoned wellbores) and in offshore oil and gas drilling operations with strict trajectory requirements, ensuring the wellbore accurately reaches the target reservoir.
Product Advantages:
Firstly, it boasts exceptional directional control precision; the high-sensitivity tool face adjustment mechanism allows for fine-tuning of the drilling direction with an accuracy of ±0.5° (depending on the model), ensuring the well trajectory strictly conforms to the design requirements. Secondly, the motor integrates power output and directional control, eliminating the need for additional directional tools, simplifying the downhole tool string structure, and improving operational efficiency. Thirdly, it exhibits excellent compatibility with MWD/LWD systems, enabling real-time monitoring of tool face angle and well trajectory parameters during drilling, which facilitates timely adjustments and reduces drilling risks. Moreover, the motor maintains stable power output and high drilling efficiency while ensuring directional accuracy, with optimized hydraulic design ensuring efficient energy conversion even in complex formation conditions. Finally, it has strong adaptability to various downhole environments, including high-temperature and high-pressure (HTHP) reservoirs and heterogeneous formations, and its robust structural design ensures reliable operation throughout the directional drilling process, reducing tool failure rates and non-drilling time.
FAQ:
Q：What is the warranty period of your downhole motor and can you provide maintenance service?
A：Our downhole motor have a warranty of 400 hours, we have our own repair station in Kazakhstan, and we will consider setting up a repair service station in other places if needed.
Q: Are you a manufacturer?
A: Yes, we are factory.
Q: How about the delivery time?
A:10-25 working days after payment.
Technical parameter table of Downhole motor
Model ID | Unit | 5LZ57×7.0 | 7LZ73×7.0 | 7LZ89×7.0 | 9LZ89×7.0 | 7LZ95×7.0 | 7LZ102×7.0 | H7LZ102×7.0 | ||
Applicable hole size | mm | 83～121 | 83～121 | 105～143 | 105～143 | 114～150 | 114～150 | 114～150 | ||
in | 3 1/4～4 3/4 | 3 1/4～4 3/4 | 4 1/8～5 5/8 | 4 1/8～5 5/8 | 4 1/8～5 7/8 | 4 1/8～5 7/8 | 4 1/8～5 7/8 | |||
Flow rate | L/S | 2-4 | 2.5-5 | 5-10 | 5-10 | 6-12 | 6-12 | 7-14 | ||
Pressure | Mpa | 3.2 | 3.2 | 2.4 | 3.2 | 4.0 | 4.0 | 4.0 | ||
Speed | r/min | 246 | 140-280 | 122-244 | 245 | 132-264 | 132-264 | 120-240 | ||
Operation Torque | N·m | 200 | 491 | 854 | 504 | 1417 | 1417 | 2054 | ||
Maximum Torque | N·m | 300 | 736 | 1281 | 756 | 2126 | 2126 | 2875 | ||
Power Output | KW | 5.4 | 14 | 21 | 13.6 | 37 | 37 | 49 | ||
Working WOB | KN | 5 | 10 | 16 | 16 | 25 | 25 | 25 | ||
MaximumWOB | KN | 10 | 15 | 30 | 30 | 40 | 40 | 40 | ||
Connection | UP | 1 1/2 REG | 2 3/8 REG | 2 7/8 REG | 2 7/8 REG | 2 7/8 REG | 2 7/8 REG | 2 7/8 REG | ||
Down | 1 1/2 REG | 2 3/8 REG | 2 7/8 REG | 2 7/8 REG | 2 7/8 REG | 2 7/8 REG | 2 7/8 REG | |||
Stage | 4.0 | 5.0 | 3.2 | 4.0 | 5.0 | 5.0 | 4.0 | |||
Model ID | Unit | 7LZ120×7.0 | 5LZ127.5×7.0 | 7LZ127.5×7.0 | 7LZ135×7.0 | 7LZ150×7.0 | 5LZ165×7.0V | 5LZ165.5×7.0V | ||
Applicable hole size | mm | 152～200 | 152～200 | 152～200 | 159～203 | 171～222 | 215～244 | 215～244 | ||
in | 6～7 7/8 | 6～7 7/8 | 6～7 7/8 | 6 1/4-8 | 6 3/4-8 3/4 | 8 1/8～9 5/8 | 8 1/8～9 5/8 | |||
Flow rate | L/S | 8-16 | 15 | 9-18 | 12-24 | 15-30 | 18-30 | 1830 | ||
Pressure | Mpa | 3.2 | 4.0 | 4.0 | 4.0 | 4.0 | 3.2 | 4.0 | ||
Speed | r/min | 85-170 | 150 | 88-176 | 94-188 | 78-156 | 112-186 | 112-186 | ||
Operation Torque | N·m | 3060 | 2242 | 4133 | 5167 | 7291 | 5330 | 6662 | ||
Maximum Torque | N·m | 4590 | 3363 | 5808 | 7306 | 10309 | 7536 | 9420 | ||
Power Output | KW | 52 | 37 | 76 | 51 | 119 | 103 | 129 | ||
Working WOB | KN | 38 | 40 | 45 | 50 | 70 | 60 | 70 | ||
MaximumWOB | KN | 70 | 80 | 90 | 100 | 140 | 120 | 140 | ||
Connection | UP | 3 1/2 REG | 3 1/2 REG | 3 1/2 REG | 3 1/2 REG | 3 1/2 REG | 4 1/2 REG | 4 1/2REG | ||
Down | 3 1/2 REG | 3 1/2 REG | 3 1/2 REG | 3 1/2 REG | 3 1/2 REG | 4 1/2 REG | 4 1/2 REG | |||
Stage | 5.0 | 5.0 | 5.0 | 5.0 | 6.0 | 5.0 | 5.0 | |||
Model ID | Unit | 7LZ165×7.0 | H7LZ172.5×7.0Ⅶ | 7LZ172×7.0Ⅶ | 3LZ172×7.0 | 4LZ172×7.0 | 5LZ178×7.0 | 7LZ178.5×7.0 | ||
Applicable hole size | mm | 215～244 | 215～244 | 215～244 | 215～244 | 215～244 | 215～244 | 213～251 | ||
in | 8 1/8～9 5/8 | 8 1/8～9 5/8 | 8 1/8～9 5/8 | 8 1/8～9 5/8 | 8 1/8～9 5/8 | 8 1/8～9 5/8 | 8 1/8～9 5/8 | |||
Flow rate | L/S | 18-36 | 20-36 | 20-36 | 18-30 | 18-30 | 20-36 | 20-36 | ||
Pressure | Mpa | 3.6 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | ||
Speed | r/min | 82-164 | 75-150 | 80-144 | 172-289 | 137-229 | 107-193 | 80-144 | ||
Operation Torque | N·m | 7979 | 12680 | 10126 | 2225 | 3245 | 7764 | 10126 | ||
Maximum Torque | N·m | 1128 | 17752 | 14318 | 3337 | 4867 | 10970 | 14318 | ||
Power Output | KW | 137 | 241 | 154 | 70.7 | 72～108 | 157 | 154 | ||
Working WOB | KN | 70 | 80 | 100 | 70 | 70 | 80 | 100 | ||
MaximumWOB | KN | 140 | 160 | 160 | 140 | 140 | 160 | 180 | ||
Connection | UP | 4 1/2 REG | 4 1/2 REG | 4 1/2 REG | 4 1/2 REG | 4 1/2 REG | 4 1/2 REG | 4 1/2 REG | ||
Down | 4 1/2 REG | 4 1/2 REG | 4 1/2 REG | 4 1/2 REG | 4 1/2 REG | 4 1/2 REG | 4 1/2 REG | |||
Stage | 4.5 | 5.0 | 5.0 | 4.0 | 4.0 | 5.0 | 5.0 | |||
Model ID | Unit | 5LZ185×7.0 | 7LZ185.5×7.0 | 5LZ197×7.0 | 5LZ197.5×7.0 | 6LZ197×7.0 | 7LZ197×7.0 | 5LZ203·5×7.0 | ||
Applicable hole size | mm | 215～244 | 215～244 | 244～311 | 244～311 | 244～311 | 244～311 | 244～311 | ||
in | 8 1/8～9 5/8 | 8 1/8～9 5/8 | 9 1/8～12 5/8 | 9 5/8～12 1/4 | 9 5/8～12 1/4 | 9 5/8～12 1/4 | 9 5/8～12 1/4 | |||
Flow rate | L/S | 20-36 | 20-36 | 25-50 | 25-50 | 25-50 | 25-50 | 25-50 | ||
Pressure | Mpa | 4.0 | 4.0 | 3.2 | 4.0 | 4.0 | 4.0 | 4.0 | ||
Speed | r/min | 105-189 | 88-176 | 84-168 | 84-168 | 83-166 | 72-144 | 84-168 | ||
Operation Torque | N·m | 7897 | 9239 | 9925 | 12407 | 12350 | 14057 | 12407 | ||
Maximum Torque | N·m | 11050 | 13069 | 14033 | 17542 | 17290 | 19870 | 17542 | ||
Power Output | KW | 156 | 170 | 174 | 218 | 214 | 211 | 218 | ||
Working WOB | KN | 90 | 120 | 100 | 120 | 120 | 125 | 120 | ||
MaximumWOB | KN | 180 | 240 | 200 | 240 | 240 | 240 | 240 | ||
Connection | UP | 4 1/2 REG | 4 1/2 REG | 5 1/2 REG | 5 1/2 REG | 5 1/2 REG | 5 1/2 REG | 5 1/2 REG | ||
Down | 4 1/2 REG | 4 1/2 REG | 6 5/8 REG | 6 5/8 REG | 6 5/8 REG | 6 5/8 REG | 6 5/8 REG | |||
Stage | 5.0 | 5.0 | 5.0 | 5..0 | 5.0 | 5.0 | 5.0 | |||
Model ID | Unit | 6LZ203×7.0 | 7LZ203·5×7.0 | 7LZ216×7.0 | 5LZ216·5×7.0 | 7LZ228×7.0 | 5LZ244·5×7.0 | 7LZ244×7.0 | ||
Applicable hole size | mm | 244～311 | 244～311 | 273～323 | 273～323 | 311～445 | 311～445 | 311～445 | ||
in | 9 5/8～12 1/4 | 9 5/8～12 1/4 | 10 3/4～12 3/4 | 10 3/4～12 3/4 | 12 1/2～17 1/2 | 12 1/2～17 1/2 | 12 1/2～17 1/2 | |||
Flow rate | L/S | 25-50 | 25-50 | 28-55 | 28-55 | 35-70 | 35-70 | 35-70 | ||
Pressure | Mpa | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | ||
Speed | r/min | 83-166 | 72-144 | 90-176 | 90-176 | 78-156 | 80-160 | 72-144 | ||
Operation Torque | N·m | 12350 | 14057 | 16183 | 12855 | 16207 | 18708 | 20231 | ||
Maximum Torque | N·m | 17290 | 19870 | 22656 | 17997 | 22915 | 26190 | 28606 | ||
Power Output | KW | 214 | 211 | 298 | 236 | 264 | 313 | 305 | ||
Working WOB | KN | 120 | 125 | 150 | 140 | 160 | 150 | 180 | ||
MaximumWOB | KN | 240 | 240 | 300 | 260 | 300 | 300 | 320 | ||
Connection | UP | 5 1/2 REG | 5 1/2REG | 6 5/8 REG | 6 5/8 REG | 6 5/8 REG | 6 5/8 REG | 6 5/8 REG | ||
Down | 6 5/8 REG | 6 5/8 REG | 6 5/8 REG | 6 5/8 REG | 6 5/8 REG | 6 5/8 REG | 6 5/8 REG | |||
Stage | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 | 5.2 | 5.3 | |||
Model ID | Unit | 3LZ286×7.0 | 5LZ286×7.0 | |||||||
Applicable hole size | mm | 375～660 | 375～660 | |||||||
in | 14 3/4～26 | 14 3/4～26 | ||||||||
Flow rate | L/S | 40-80 | 45-90 | |||||||
Pressure | Mpa | 3.2 | 3.2 | |||||||
Speed | r/min | 165 | 68-136 | |||||||
Operation Torque | N·m | 11840 | 27196 | |||||||
Maximum Torque | N·m | 17760 | 38070 | |||||||
Power Output | KW | 215 | 387 | |||||||
Working WOB | KN | 170 | 180 | |||||||
MaximumWOB | KN | 320 | 340 | |||||||
Connection | UP | 7 5/8 REG | 7 5/8 REG | |||||||
Down | 7 5/8 REG | 7 5/8 REG | ||||||||
Stage | 4.0 | 4.5 | ||||||||
