If you've ever watched a well-planned drilling run outperform a comparable offset by 20–40% ROP with fewer tool failures, chances are it wasn't just the bit, the formation, or luck—it was superior control of differential pressure across the mud motor. Here's a provocative claim: most performance losses in a bottomhole assembly driven by a mud motor are not caused by the rock; they're caused by poor pressure management. That's right—more trips, more stalls, more burnt stators, and more broken elastomers almost always point back to differential pressure control.

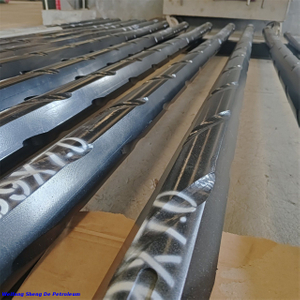

The core problem is simple but unforgiving: a mud motor converts hydraulic energy—flow and pressure—into rotation and torque. Mismanage that pressure, and your motor either starves or chokes. Run too low, and you get inadequate bit speed and torque; run too high, and you hit stall, spike, and damage. The result is costly downtime and compromised borehole quality.
In this post, you'll learn exactly how differential pressure governs the performance envelope of a mud motor; how to read and use off-bottom pressure, stall point pressure, and stalled out pressure; how to find and maintain an optimum drilling pressure; and how to adapt these concepts to today's high-flow, high-HHP systems. We'll walk through practical surface monitoring, downhole feedback, trend-based decision-making, and the interplay with hydraulics, bit selection, and formation mechanics—so you can drill faster, safer, and longer on bottom.
Key Takeaway
Differential pressure is the single most actionable lever for extracting maximum torque and RPM from a mud motor without damaging the power section.
Track three pressure waypoints at all times: off-bottom pressure (baseline), stall point pressure (limit), and stalled out pressure (danger zone). Drill at an optimum differential just below stall.
Operate the mud motor within the upper end of its rated flow window (typically 70–85% of maximum) to achieve higher RPM, greater torque, and stronger stall resistance—without crossing into destructive pressure ranges.
Use trend-based adjustments: as the off-bottom baseline rises with added drill pipe or mud property changes, re-verify stall point and re-center your optimum drilling pressure.
Integrate hydraulics modeling, bit nozzle optimization, and real-time pressure/RPM/torque feedback for precise control and superior ROP at a lower cost per foot.
Off-bottom Pressure
Off-bottom pressure is the baseline circulating pressure recorded on the rig gauge (or standpipe sensor) when the pump is at the intended drilling speed but the bit is not contacting the formation. It is crucial because every other pressure state—stall point, stalled out, and optimum drilling pressure—is measured as a differential above this baseline. In other words, off-bottom pressure is your reference zero for interpreting motor load.
Why off-bottom pressure changes and why it matters:
Frictional pressure losses increase with more drill pipe in the hole and with higher flow rates.
Mud rheology and density shifts (e.g., from dilution, barite addition, temperature) alter system resistance.
Surface equipment and annular constraints change as BHA length, stabilizers, and MWD/LWD tools vary.
Practical steps:
Establish the off-bottom baseline at the exact pump rate you intend to drill with. Changing flow changes motor output, so always re-baseline after meaningful flow changes.
Re-check off-bottom when you add stands. The baseline generally creeps upward with depth. Failing to re-check can cause you to think you're at the same differential pressure when you're actually closer to stall.
Cross-verify off-bottom with downhole tool data where available (e.g., internal motor ΔP from MWD). Surface standpipe pressure includes system friction; the motor's internal differential is a portion of that.
Interpreting off-bottom pressure with a mud motor:
The mud motor consumes a portion of the system's pressure as hydraulic horsepower across the power section. Off-bottom pressure excludes the motor's additional load from cutting rock.
Off-bottom pressure stability indicates steady mud properties and circulation path. Rising off-bottom at constant conditions can signal plugging (bit nozzles, MWD screens) or cuttings accumulation.
A simple workflow:
Set pump rate to target drilling flow.
Record off-bottom pressure (P_off).
Weight the bit gently to bottom and build differential pressure relative to P_off as you commence drilling.
Track how applied weight on bit (WOB) and rotary drive interact with ΔP to maintain the motor in its efficient envelope.
Stall Point Pressure
Stall point pressure is the precise surface pressure reading at which the mud motor becomes overpowered: internal rotor-stator motion ceases and bit rotation from the motor drops toward zero. At stall point, the motor has reached its torque ceiling for the given flow rate and mud properties. Push past this and you risk elastomer damage, stator delamination, and accelerated wear.
Key traits of stall point:
It is repeatable at a given flow rate, temperature, and mud rheology—until system conditions change.
It is identified by a characteristic inflection: incremental WOB increases produce disproportionately large pressure increases with little to no gain in ROP. As you kiss stall, torque increases sharply while RPM collapses.
Downhole, stall appears as a rapid RPM decay to near zero with a peak torque event; surface, you'll see the pressure plateau then surge.
How to find stall point safely:
From P_off, gradually increase WOB while holding flow rate constant in the motor's recommended upper band (70–85% of max).
Watch for a flattening ROP response to added WOB and a rising standpipe pressure slope.
Mark the pressure at which the motor hesitates or stalls: P_stall.
Back off WOB immediately to avoid a stalled out event.
Why you must know P_stall:
It sets the upper bound of your operating window. Your optimum drilling pressure will be below this value.
It shifts with flow: higher flow generally raises stall torque capacity and shifts P_stall higher.
It is sensitive to temperature: elastomer expansion at elevated bottomhole temperatures can reduce clearance, changing internal ΔP behavior.
Stall margin = P_stall − P_on-bottom. Maintain a positive margin during steady-state drilling.
Many teams standardize a working margin of 100–300 psi below stall, depending on tool design and formation variability.
Stalled Out Pressure
Stalled out pressure is the abrupt standpipe pressure spike—often 300 psi or more—immediately after crossing the stall point. It's a redline event: the rotor stops relative to the stator, but the pump continues to deliver flow, causing a rapid rise in differential pressure across the power section. Stay here for even a short period and you risk catastrophic elastomer overheating, twist-offs in extreme cases, and expensive motor rebuilds.
Recognizing stalled out:
You reach P_stall, then pressure jumps sharply (e.g., +300–800 psi). ROP collapses, torque maxes, and surface rotary may lug if you are driving the string.
Downhole vibration signatures shift; sometimes MWD downlink indicates zero motor RPM if telemetry is real-time.
When you pick up off bottom, the pressure drops back to P_off almost immediately.
Immediate actions:
Slack off WOB or pick up to clear the bit. Do not keep pushing WOB to "muscle through."
Reduce flow temporarily if necessary to release the stall, then re-establish the baseline and climb back to the optimum differential.
Circulate cuttings to ensure no packing-off contributed to the event.
Preventing stalled out events:
Operate the mud motor near the upper flow recommendation but maintain a defined stall margin.
Smooth WOB application. Avoid sudden heavy weight transfers, especially in interbedded, cherty, or nodular formations.
Monitor for fluctuations in mud properties (viscosity spikes, solids loading) that increase system ΔP and shrink your stall margin without warning.
Use real-time analytics where available: motor current proxies, torque estimates, and RPM readouts help you see stall onset earlier than a human can react on the gauge alone.
Optimum Drilling Pressure
Optimum drilling pressure is the sweet spot where the mud motor delivers its maximum effective ROP at the least destructive differential load. It is typically just below the stall point, balancing torque and RPM without crossing into stall risk. While the precise target varies by motor design, bit type, and formation, a practical field rule is to hold ΔP_drill 100–300 psi below P_stall at the chosen flow rate.
How to set the optimum:
Determine P_off at target flow.
Identify P_stall by controlled WOB ramping.
Choose a working differential ΔP_opt ≈ P_stall − 100 to −300 psi (adjust per tool vendor guidance and formation variability).
Convert ΔP_opt back to a standpipe target: P_target = P_off + ΔP_opt.
Drill while keeping the standpipe pressure near P_target, adjusting WOB and surface RPM to hold ΔP steady as formation changes.
Why this works:
A mud motor's power section converts hydraulic horsepower into bit speed (RPM) and torque. Near-stall, torque is high but RPM collapses; far below stall, RPM may be decent but torque is insufficient in harder rock. The optimum sits just under stall, preserving both adequate torque and usable RPM.
Operating in the top 70–85% of the power section's flow rating increases torque and RPM simultaneously, raising the stall threshold and letting you hold a higher ΔP_opt safely.
Data-driven target refinement:
Track ROP vs ΔP_drill. The ROP curve usually rises with ΔP until a knee just before stall, then flattens. Run at the knee.
Monitor MSE (mechanical specific energy). As ΔP approaches optimum, MSE should decrease, indicating efficient energy transfer. Rising MSE at higher ΔP suggests you are just pushing against stall with no ROP gain.
Use bit dull grades and motor inspection to validate: a healthy stator and balanced cutter wear profile indicate appropriate ΔP control; blistering elastomer and cone/cutter chipping often correlate with repeated stall or overloading.
Interaction with bit hydraulics and nozzle selection:
Nozzle total flow area (TFA) sets jet velocity and influences system pressure. With a mud motor, you must balance jet impact (cleaning, HHP) and available motor ΔP. Oversized nozzles lower pressure but may starve torque; undersized nozzles inflate system pressure, reducing stall margin.
Optimize TFA so that at your target pump rate you can achieve both adequate bit hydraulic horsepower and a ΔP_opt just below stall.
Flow rate strategy:
Within the motor's power section window, higher flow increases RPM and torque capacity. If you need more torque margin without moving closer to stall, raise flow slightly and then re-map P_off and P_stall. Do not assume the old stall point still applies.
Beware temperature impacts: higher flow cools the elastomer, which is good, but deeper, hotter holes still raise stator temperature over time, shifting clearances and thus stall behavior.
Conclusion
Effective mud motor drilling is not just about turning pumps harder or pushing more weight. It's about precision control of differential pressure. By anchoring your operations to three pressure references—off-bottom, stall point, and stalled out—and deliberately setting an optimum drilling pressure just below stall, you convert hydraulic energy into bit work with maximum efficiency while protecting the motor. Stay in the motor's upper flow window, validate your stall margin frequently as depth and mud conditions change, and use trend-based feedback (ROP, MSE, torque, RPM) to keep the system in tune. Done right, you'll see higher ROP, longer motor life, fewer trips, and a lower cost per foot—all outcomes that matter on every well.
